Plumbing Pipes

• Application
• other, Automobile, Aerospace, Marine, Furniture, Industrial

• Bend Radius
• As per pipe diameter

• Coating Type
• Anodized / Powder Coated

• Color
• Silver

• Connection
• Other, Welded / Seamless

• Connection Type
• Threaded / Plain / Grooved

• Diameter
• Customizable

• Flexibility
• Rigid

• Length
• Up to 12 meters

• Material
• Other , Aluminium

• Material Grade
• 6061, 6082, 6063, 7075, 2014

• Outer Diameter
• 6 mm - 250 mm

• Product Type

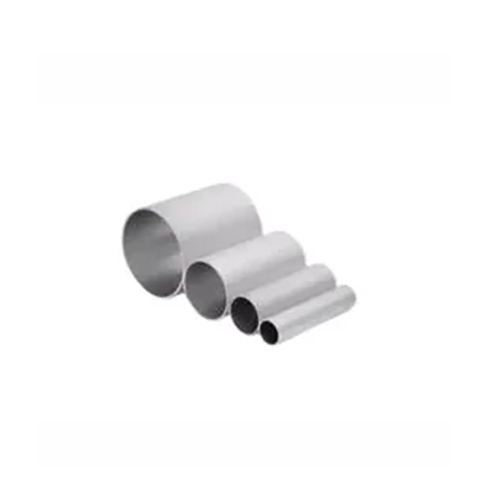

• Other, Aluminium Pipe

• Rated Pressure
• As per grade and thickness

• Sealing Type
• As per application

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B241 / B241M

• Surface Treatment
• Other, Anodized / Mill Finish

• Temperature Range
• -50C to +250C

• Tensile Strength
• 150 - 400 MPa

• Thickness
• 0.5 mm to 20 mm

• Thread Type
• NPT / BSP (as required)

• Tolerance
• 0.05 mm

• Usage
• Structural, Construction, Engineering, Fabrication

• Yield Strength
• 90 - 320 MPa

• Application
• other, Water, Oil, Gas, Structural, General Engineering

• Bend Radius
• Typically 3D to 5D (dependent on diameter)

• Coating Type
• Galvanized, Painted, Uncoated

• Color
• Black, Silver (as per coating)

• Connection
• Other, Welded, Seamless, Threaded

• Connection Type
• Threaded, Socket Weld, Butt Weld, Flanged

• Diameter
• Various (custom as per requirement)

• Flexibility
• Rigid

• Length
• 2 m to 12 m (custom lengths available)

• Material
• Carbon Steel

• Material Grade
• A106 Gr B, A53 Gr B, API 5L, IS 1239, IS 3589, EN 10219, EN 10217

• Outer Diameter
• 1/8 inch to 48 inch

• Product Type

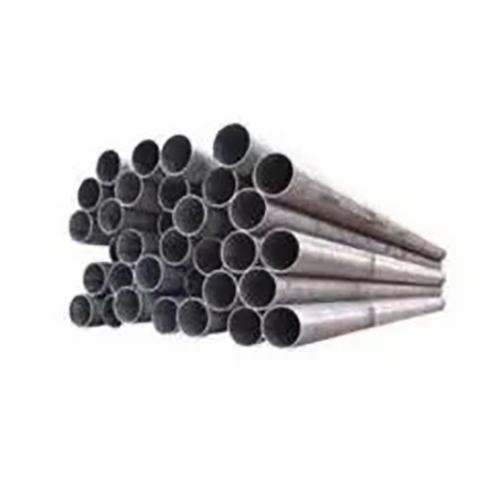

• Other, Carbon Steel Pipe

• Rated Pressure
• Up to 350 bar (depending on wall thickness/diameter)

• Sealing Type
• Threaded/Mechanical/Fusion Welded

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM, DIN, JIS, IS

• Surface Treatment
• Other, Black, Galvanized, Painted, Bare

• Temperature Range
• -29C to 427C

• Tensile Strength
• 340 MPa to 620 MPa (depends on grade)

• Thickness
• Up to 50 mm (varies by type)

• Thread Type
• NPT, BSP, Metric

• Tolerance
• 1% to 10% (varies with standards and diameter)

• Usage
• Industrial, Plumbing, Construction, Oil & Gas

• Yield Strength
• 210 MPa to 415 MPa

• Application
• other, Construction, Plumbing, Water Supply, Scaffolding, Fencing

• Bend Radius
• Depends on diameter; not designed for tight bends

• Coating Type
• Hot-Dip Galvanized

• Color
• Silver/Grey

• Connection
• Other, Welded/Threaded

• Connection Type
• Screwed/Socket Weld

• Diameter
• Customizable as per requirements

• Flexibility
• Rigid

• Length
• 6 m, 12 m or custom

• Material
• Other , Galvanized Steel

• Material Grade
• A, B, C, as per standard

• Outer Diameter
• 1/2 inch - 12 inch

• Product Type

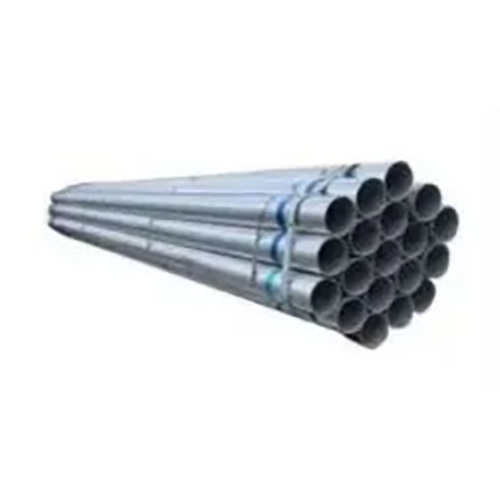

• Other, Galvanized Steel Pipe

• Rated Pressure
• Medium to High

• Sealing Type
• Threaded/Mechanical

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM, BS, IS

• Surface Treatment
• Galvanized

• Temperature Range
• -20C to 350C

• Tensile Strength
• 350-600 MPa

• Thickness
• 2 mm - 10 mm

• Thread Type
• BSP/NPT

• Tolerance
• 1%

• Usage
• Water, Gas, Oil, Structural

• Yield Strength
• 240 MPa minimum

• Application
• other, Fluid Transport, Structural, Chemical, Food Industry

• Bend Radius
• As per pipe diameter; typically 2-5D

• Coating Type
• Uncoated; available with protective film

• Color
• Silver

• Connection
• Other, Welded or Seamless

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• Varies as per requirement

• Flexibility
• Rigid

• Length
• 1 m - 12 m or customized

• Material
• Stainless Steel

• Material Grade
• 304 / 316 / 304L / 316L

• Outer Diameter
• 6 mm - 630 mm

• Product Type
• Other, Stainless Steel Pipe

• Rated Pressure
• Up to 400 Bar depending on specification

• Sealing Type
• Depends on connection (threaded or welded)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A312 / A213 / A269

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• 520 MPa - 750 MPa

• Thickness
• 1 mm - 20 mm

• Thread Type
• NPT/BSPT/BSP

• Tolerance
• 0.1 mm

• Usage
• Industrial, Construction, Plumbing

• Yield Strength
• 205 MPa - 315 MPa

• Application
• other, Oilfield, Well Completion, Oil Extraction

• Bend Radius
• N/A (Rigid Tubing)

• Coating Type
• API Approved Varnish or Black Paint

• Color
• Black with Colored Couplings

• Connection
• Other, External Upset End (EUE)

• Connection Type
• Threaded and Coupled

• Diameter
• Standard API Diameter

• Flexibility
• Rigid

• Length
• Range 1 (6.10-7.32m), Range 2 (8.53-9.75m), Range 3 (11.58-13.72m)

• Material
• Other , High Grade Carbon Steel

• Material Grade
• J55, K55, N80, L80, P110

• Outer Diameter
• 2 3/8 to 4 1/2 (60.3mm to 114.3mm)

• Product Type

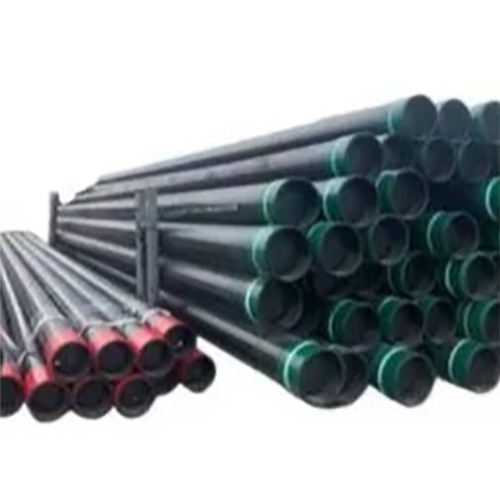

• Other, EUE Oil Tubing

• Rated Pressure
• As per API Grade and Size

• Sealing Type
• Elastomer Seal, Metal-to-Metal Seal (as per spec)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, API 5CT

• Surface Treatment
• Other, Anti-corrosion Coating, Black Painted

• Temperature Range
• -40C to 110C (typically)

• Tensile Strength
• As per API 5CT standard

• Thickness
• As per API Specification

• Thread Type
• EUE, External Upset End

• Tolerance
• High Precision, As per API Standard

• Usage
• Oil and Gas Well Tubing

• Yield Strength
• As per API 5CT standard

• Application
• other, Oil Tubing, Pipeline Transportation

• Bend Radius
• Not applicable / Rigid pipe

• Coating Type
• Black Painted, Anti-corrosive Coating, Varnish

• Color
• Black with Colored End Caps

• Connection
• Other, Threaded and Coupled / Plain End

• Connection Type
• Pin & Box, Male-Female Thread

• Diameter
• As specified (e.g., 2 to 20)

• Flexibility
• Rigid

• Length
• 5.8m, 6m, 12m or as required

• Material
• Carbon Steel

• Material Grade
• API 5L Grade B/X42/X46/X52/X56/X60/X65/X70

• Outer Diameter
• 21.3 mm - 508 mm

• Product Type

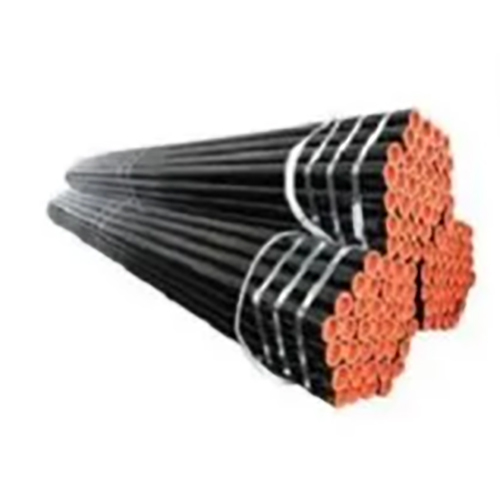

• Other, Oil Tubing Pipe

• Rated Pressure
• Up to 30 MPa (depending on grade and size)

• Sealing Type
• Threaded Seal with Coupling

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, API 5L

• Surface Treatment
• Other, Black Painted, Varnished or as specified

• Temperature Range
• -29C to +400C

• Tensile Strength
• 415 - 760 MPa (varies with grade)

• Thickness
• 3.2 mm - 12.7 mm (customizable)

• Thread Type
• API STC, LTC, BTC

• Tolerance
• 0.5% or as per API Standard

• Usage
• Oil and Gas Industry, Well Casing, Fluid Transmission

• Yield Strength
• 245 - 485 MPa (varies with grade)

• Application
• other, Industrial, Construction, Oil & Gas, Chemical, Power Plants, Refineries

• Bend Radius
• Standardized as per diameter and application

• Coating Type
• Black Paint/Oil Coated/Phosphated/Galvanized

• Color
• Black or as per requirement

• Connection
• Other, Plain End / Beveled / Threaded

• Connection Type
• Plain/Threaded/Beveled

• Diameter
• Nominal Pipe Size (NPS) 1/2 to 24

• Flexibility
• Rigid

• Length
• Single Random, Double Random, or Custom Lengths (up to 12 meters or as required)

• Material
• Carbon Steel

• Material Grade
• Grade A, Grade B, Grade C

• Outer Diameter
• 1/2 inch to 24 inch (approx.)

• Product Type

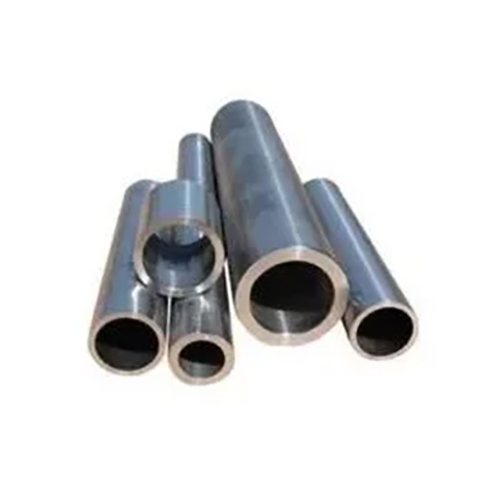

• Other, Seamless Steel Pipe

• Rated Pressure
• As per Schedule and Size

• Sealing Type
• Threaded or welded joints

• Section Shape
• Round

• Shape
• Round

• Standard
• Other, ASTM A106

• Surface Treatment
• Other, Black Painted / Oiled / Mill Finished

• Temperature Range
• -29C to +425C or as per material grade

• Tensile Strength
• 415 MPa (min) for Grade B

• Thickness
• Sch 10, Sch 40, Sch 80 or as required

• Thread Type
• NPT or as required

• Tolerance
• 1% or as per standard specification

• Usage
• Fluid Transmission, Oil & Gas, Petrochemical, Boiler, High Temperature Applications

• Yield Strength
• 240 MPa (min) for Grade B

• Application
• other, Fluid Transport, Structure Pipe, Hydraulic Pipe

• Bend Radius
• Standard Industrial (Not flexible pipe)

• Coating Type
• Black Oil Paint, Varnish, Anticorrosive Coating

• Color
• Metallic Gray / Black

• Connection
• Other, Welded, Threaded, Plain End

• Connection Type
• Threaded, Flanged, Welded

• Diameter
• Customizable

• Flexibility
• Rigid

• Length
• 5.8m, 6m, 11.8m, 12m, or as required

• Material
• Other , Low Carbon Steel

• Material Grade
• A106, A53, A333, A235 Grades B/C

• Outer Diameter
• 10mm - 820mm

• Product Type

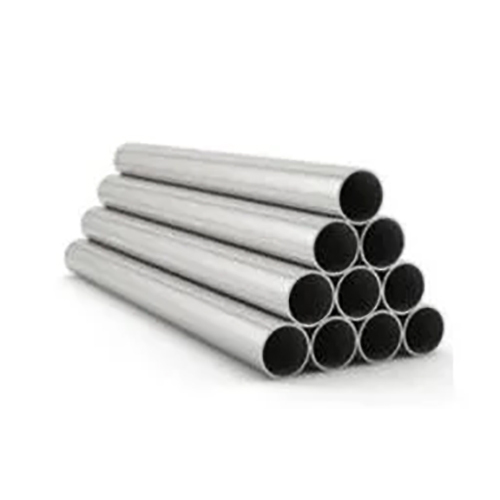

• Other, Seamless Steel Pipe

• Rated Pressure
• Up to 32 MPa (Depending on size & wall thickness)

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A106, A333, A53, A235

• Surface Treatment
• Other, Oiled, Phosphated, Black Painted or Bare

• Temperature Range
• -46C to 450C

• Tensile Strength
• 415 MPa

• Thickness
• 2mm - 50mm

• Thread Type
• NPT, BSPT, BSP

• Tolerance
• 0.5mm

• Usage
• Oil and Gas, Petroleum, Boiler, Chemical Industries

• Yield Strength
• 245 MPa
