Pipe Fittings

• Application
• other, Pipeline, Oil & Gas, Water Supply, Chemical Processing

• Bend Radius
• Standard as per ASME B16.9

• Coating Type
• None / As requested

• Color
• Silver / Metallic

• Connection
• Other, Welded / Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• Varies as per fitting type

• Flexibility
• Rigid

• Length
• As per standard or custom requirement

• Material

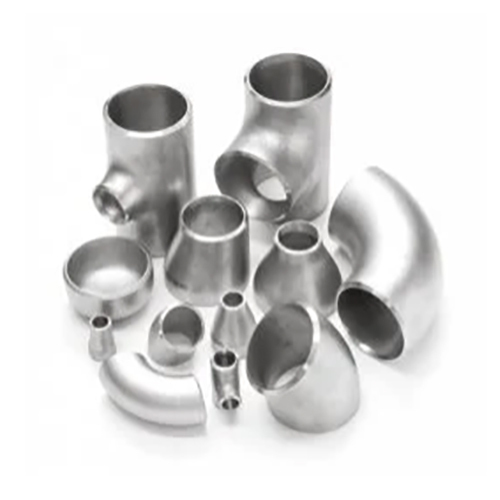

• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L / 321

• Outer Diameter
• 1/8 to 48 (3mm to 1200mm)

• Product Type
• Other, Pipe Fittings

• Rated Pressure
• Up to 3000 psi

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Coupling

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished / Pickled / Sandblasted

• Temperature Range
• -196C to 600C

• Tensile Strength
• >520 MPa

• Thickness
• 0.5 mm to 20 mm

• Thread Type
• NPT / BSPT / BSP

• Tolerance
• 0.03 mm

• Usage
• Industrial, Plumbing, Chemical

• Yield Strength
• >205 MPa

• Application
• other, Connecting Pipes, Flow Direction Change, Reducing Sizes

• Bend Radius
• R=1.5D, R=2.5D, Custom

• Coating Type
• Black Paint, Anti-rust Oil, Galvanized

• Color
• Black

• Connection
• Other, Welded / Threaded

• Connection Type
• Butt Weld / Socket Weld / Threaded

• Diameter
• 1/2 to 48

• Flexibility
• Rigid

• Length
• Custom / Standard

• Material
• Carbon Steel

• Material Grade
• ASTM A234 WPB, WP11, WP5, WP9, WP22

• Outer Diameter
• 1/2 to 48 (21.3mm to 1219mm)

• Product Type
• Other, Pipe Fitting

• Rated Pressure
• 150# to 2500#

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Bend, Coupling, Union

• Standard
• Other, ASTM A234 / ASME B16.9 / EN 10253

• Surface Treatment
• Other, Black Painted, Oiled, Galvanized

• Temperature Range
• -20C to 425C

• Tensile Strength
• 415 MPa min

• Thickness
• Sch 20 to Sch XXS (1.5mm to 50mm)

• Thread Type
• NPT/BSP/Custom

• Tolerance
• 1% to 5%

• Usage
• Oil & Gas, Water Supply, Industrial, Chemical, Construction

• Yield Strength
• 240 MPa min

• Application
• other, Pipeline Connection, Pressure Piping, Power Plant

• Bend Radius
• 1D, 1.5D, 2D, 3D, 5D

• Coating Type
• Black Paint, Anti-Rust Oil, Galvanized (on request)

• Color
• Metallic Grey

• Connection
• Other, Welded, Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 1/2 to 48

• Flexibility
• Rigid

• Length
• 2 inch to 20 inch, Custom Lengths Available

• Material
• Other , Alloy Steel

• Material Grade
• ASTM A234 WPB/WP11/WP22, A420 WPL6

• Outer Diameter
• 1/2 to 48 (21.3mm - 1219mm)

• Product Type

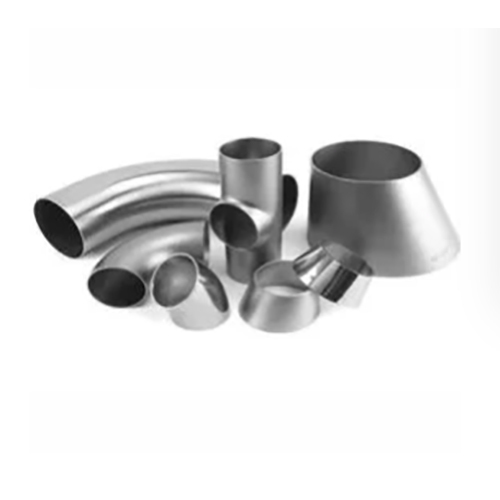

• Other, Alloy Steel Pipe Fittings

• Rated Pressure
• Class 150 to 2500

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Cross, Coupling, Nipple

• Standard
• Other, ASTM A234, ANSI B16.9, ANSI B16.28, MSS-SP-75

• Surface Treatment
• Other, Shot Blasted, Passivated, Polished

• Temperature Range
• -29C to 593C

• Tensile Strength
• 415 - 655 MPa

• Thickness
• 2mm - 50mm

• Thread Type
• NPT, BSPT, BSP

• Tolerance
• 0.5mm

• Usage
• Industrial Pipe Fitting, Plumbing, Oil & Gas, Petrochemical

• Yield Strength
• 240 - 450 MPa

• Application
• other, Chemical, Oil & Gas, Petrochemical, Water Treatment

• Bend Radius
• Standard/As per requirement

• Coating Type
• Uncoated / Custom Coating

• Color
• Metallic Silver

• Connection
• Other, Welded / Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 12 mm - 600 mm

• Flexibility
• Rigid

• Length
• Custom Lengths Available

• Material
• Other , Duplex Stainless Steel

• Material Grade
• UNS S31803, UNS S32205

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type

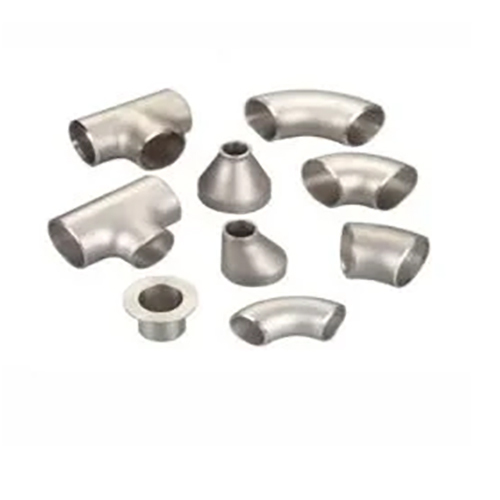

• Other, Duplex Pipe Fittings

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-Metal Seal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Nipple, Cap, Coupling

• Standard
• Other, ASTM A815 / ASME SA815

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -50C to 300C

• Tensile Strength
• 620 MPa (min)

• Thickness
• 1 mm - 12 mm

• Thread Type
• BSP, NPT

• Tolerance
• 0.05 mm

• Usage
• Piping Connection, Fluid Transportation

• Yield Strength
• 450 MPa (min)

• Application
• other, High Pressure, Corrosive Environments, Water Treatment

• Bend Radius
• As per fittings specification

• Coating Type
• Uncoated / As per client specification

• Color
• Silver / Metallic

• Connection
• Other, Butt Weld, Socket Weld, Threaded

• Connection Type
• Welded / Threaded / Flanged

• Diameter
• As per requirement

• Flexibility
• Rigid

• Length
• Custom/Standard Length

• Material
• Other , Super Duplex Stainless Steel

• Material Grade
• UNS S32750 / UNS S32760

• Outer Diameter
• 1/2 to 24 (12mm to 610mm)

• Product Type

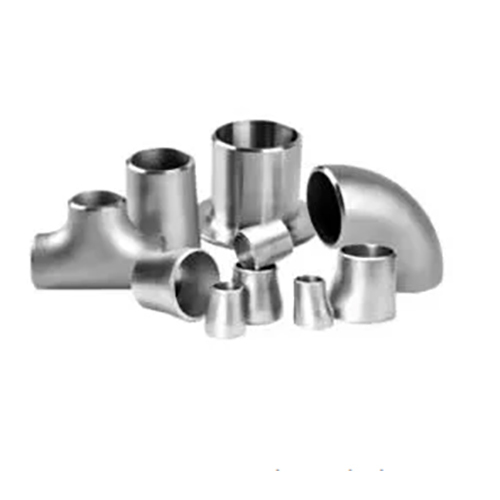

• Other, Super Duplex Pipe Fittings

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Cap

• Standard
• Other, ASTM A815 / ASME SA815

• Surface Treatment
• Other, Pickled, Passivated

• Temperature Range
• -50C to +300C

• Tensile Strength
• 800 MPa Min

• Thickness
• Sch 5S to Sch XXS

• Thread Type
• NPT / BSP (for threaded fittings)

• Tolerance
• 0.5 mm

• Usage
• Pipeline Joining, Oil & Gas, Chemical, Petrochemical

• Yield Strength
• 550 MPa Min

• Application
• other, Chemical industries, Petrochemical, Oil & Gas, Power plants

• Bend Radius
• 1D, 1.5D, 2D, 3D, Custom

• Coating Type
• Uncoated/Polished finish

• Color
• Silver/Grey

• Connection
• Other, Welded, Threaded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 12 mm to 610 mm

• Flexibility
• Rigid

• Length
• Customizable, Standard lengths

• Material
• Other , Nickel Alloy

• Material Grade
• Nickel 200, Nickel 201, Alloy 600, Alloy 625, Alloy 800

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type

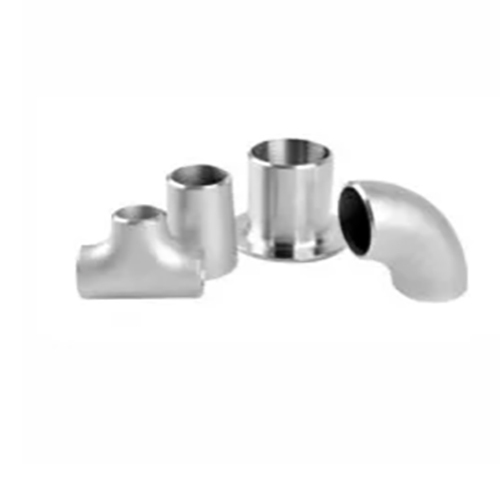

• Other, Nickel Alloy Pipe Fittings

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling

• Standard
• Other, ASTM B366, ASME SB366

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 700C

• Tensile Strength
• 350 - 550 MPa

• Thickness
• Up to 10 mm

• Thread Type
• NPT/BSP (for threaded fittings)

• Tolerance
• 0.5 mm

• Usage
• Pipe connection, Flow regulation

• Yield Strength
• 150 - 310 MPa

• Application
• other, Salt Water Piping, Cooling, Firefighting Systems

• Bend Radius
• Standard and Custom as per requirement

• Coating Type
• Uncoated / Custom coated options

• Color
• Copper/Bronze

• Connection
• Other, Welded / Threaded

• Connection Type
• Butt Weld, Socket Weld, Flanged

• Diameter
• 12.7 mm to 323.9 mm

• Flexibility
• Rigid

• Length
• Custom as required

• Material

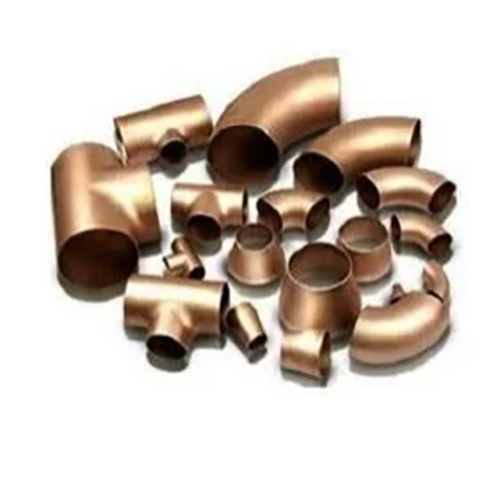

• Other , Copper Nickel (Cu-Ni)

• Material Grade
• Cu-Ni 90/10, Cu-Ni 70/30

• Outer Diameter
• 1/2 to 12 (12.7 mm to 323.9 mm)

• Product Type
• Other, Pipe Fittings

• Rated Pressure
• Up to 20 bar

• Sealing Type
• Metal to Metal (welded joints)

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupling

• Standard
• Other, ASTM B466 / B467, DIN 86019

• Surface Treatment
• Other, Polished / Annealed

• Temperature Range
• -196C to 300C

• Tensile Strength
• Up to 345 MPa

• Thickness
• 1.5 mm - 8 mm

• Thread Type
• BSP, NPT (for threaded fittings)

• Tolerance
• 0.1 mm

• Usage
• Marine, Shipbuilding, Offshore, Power, Desalination

• Yield Strength
• Minimum 130 MPa

• Application
• other, Pipeline Systems, Petrochemical, Oil & Gas, Water Treatment

• Bend Radius
• 1D, 1.5D, 2D or Custom

• Coating Type
• Uncoated / Optional Custom Coating

• Color
• Silver / Metallic

• Connection
• Other, Butt Weld, Socket Weld, Threaded

• Connection Type
• Welded, Threaded

• Diameter
• Custom as per requirement

• Flexibility
• Rigid

• Length
• Upto 6 Meter or as required

• Material
• Titanium

• Material Grade
• Titanium Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 12

• Outer Diameter
• 1/2 inch to 24 inch (DN15-DN600)

• Product Type

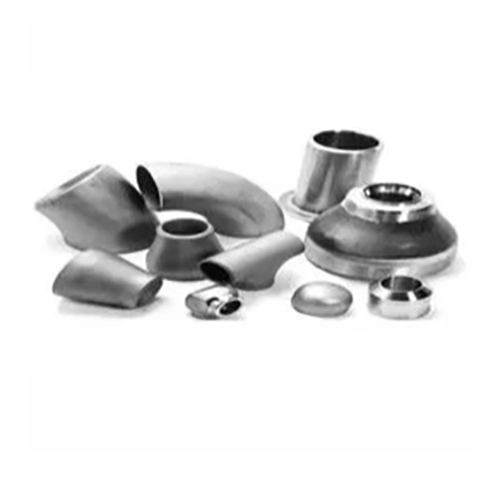

• Other, Titanium Pipe Fittings

• Rated Pressure
• Class 150 to Class 2500

• Sealing Type
• Metal to Metal Seal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Cap, Stub End, Cross, Coupling, Nipple, Flange

• Standard
• Other, ASTM B363, ASME SB381, ANSI B16.9, MSS-SP-43, DIN 2605, JIS H4640

• Surface Treatment
• Other, Polished, Pickled, Sand Blasted

• Temperature Range
• -196C to 600C

• Tensile Strength
• 345 MPa (Grade 2), 895 MPa (Grade 5)

• Thickness
• Sch 5S, Sch 10S, Sch 40S, Sch 80S or Custom

• Thread Type
• NPT, BSP, BSPT

• Tolerance
• 0.05 mm

• Usage
• Industrial, Chemical Processing, Marine, Power Generation

• Yield Strength
• 275 MPa (Grade 2), 828 MPa (Grade 5)

• Application
• other, Water, Air, Oil, and Gas Pipeline Systems

• Bend Radius
• As per fitting geometry

• Coating Type
• Hot-dip Galvanized

• Color
• Silver / Grey

• Connection
• Other, Threaded / Screwed / Socket weld

• Connection Type
• Male/Female BSP/ NPT Threaded

• Diameter
• 12 inch to 6 inch

• Flexibility
• Rigid

• Length
• Custom / Standard (varies by fitting type)

• Material
• Other , Galvanized Iron (GI) / Mild Steel

• Material Grade
• A or B class GI / Mild Steel

• Outer Diameter
• 15 mm to 150 mm

• Product Type

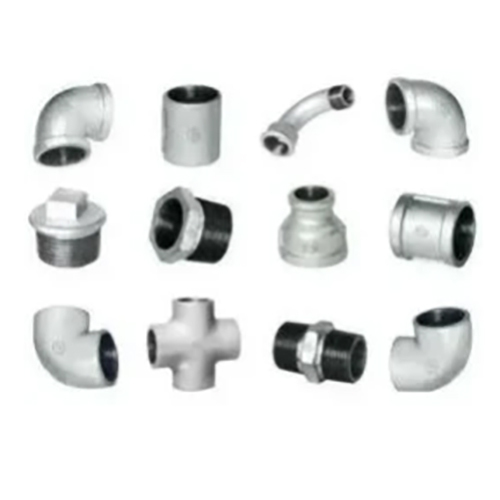

• Other, Galvanized Pipe Fittings

• Rated Pressure
• Up to 20 bar

• Sealing Type
• Threaded seal

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupling, Reducer, Cap, Cross, Nipple

• Standard
• Other, ISI/BS 1387/ASTM/EN

• Surface Treatment
• Other, Hot-dip galvanized / Zinc coating

• Temperature Range
• -20C to 120C

• Tensile Strength
• 350 MPa (minimum)

• Thickness
• 2 mm to 10 mm

• Thread Type
• BSP / NPT

• Tolerance
• 1% to 5%

• Usage
• Plumbing, Water Supply, Gas Lines, Industrial Piping

• Yield Strength
• 240 MPa (minimum)
